Wall Pack Bracket
$25.00 – $28.00

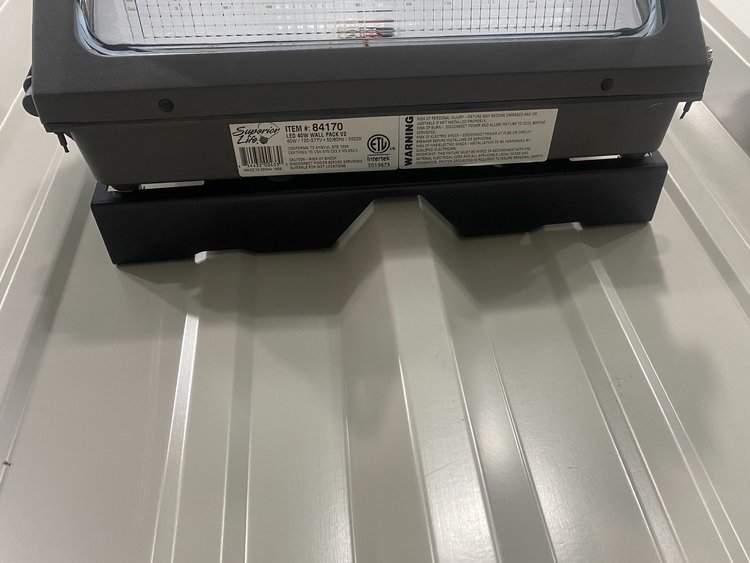

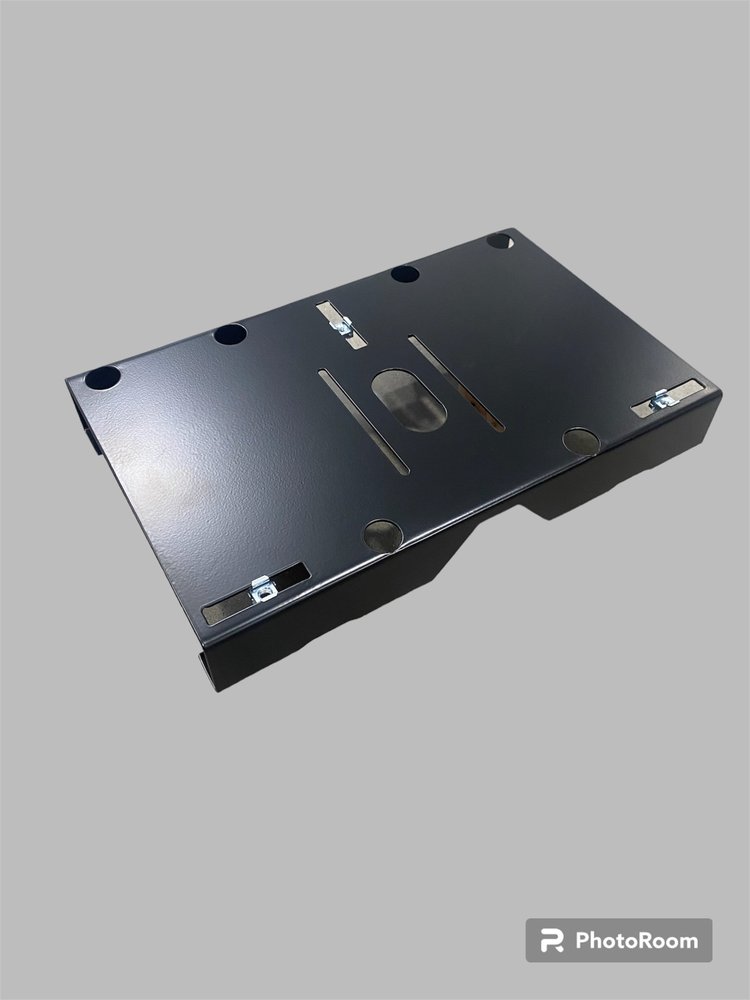

Our Wall Pack Brackets are designed to simplify mounting wall pack lights to metal buildings. Made of 16 gauge galvanized steel to prevent rusting. Three movable cage nuts provide the ideal location to mount the light to the bracket. Option for mounting an electrical box behind the bracket. Choose between centered on the rib or centered between the ribs. Available for R/PBR panel or AG panel. Brackets measure 1-3/4” x 8” x 12-3/4”.
Parts are made to order. Please allow for 2-4 week lead time.
| Mounting Location: | Centered on rib, Centered between ribs |
|---|---|
| Panel Type: | R/PBR Panel, AG Panel |
| Mounting Instruction: | Follow the Steps |
| Step 1: | Transfer and drill three holes for 1/4-20 bolts into the back of the wall pack light using the three movable cage nuts on the bracket. Be sure not to drill into any electrical components. If the light will not allow the use of the three cage nuts, there is ample room to drill other mounting holes as needed. |
| Step 2: | Mount the Wall Pack Bracket to the metal siding using the mounting holes on the back side of the bracket. Screw into a stud or girt whenever possible. (mounting screws not included) |
| Step 3: | Temporarily attach the light to the bracket using the supplied hardware and mark where the wiring needs to go through the wall. Take the bracket off and drill an adequate size hole for the wiring. Always use a threaded nipple or conduit to protect the wires. |
| Step 4: | Attach the light using the supplied hardware. |
| Powder Coated Black | Yes, No |
